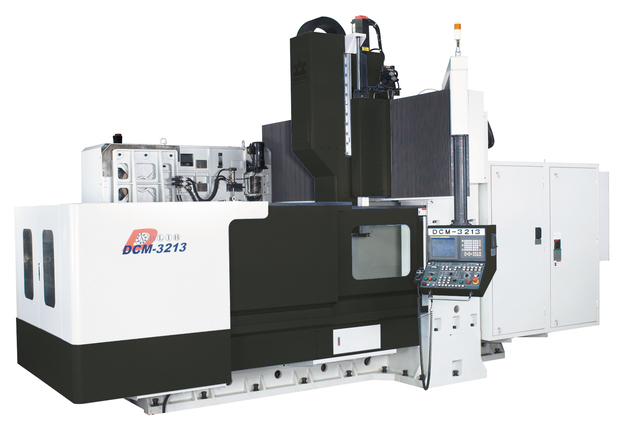

DOUBLE COLUMN MACHINING CENTER

dcm-3213


Machine Specifications
MODEL DCM-3213
TABLE
Working surface 3500 X 1350 mm
T solt (size x number x distance) 22 X 9 X 150 mm
Max. table load 5000 kgw
Distance between table top and ground 905 mm
TRAVEL
Longitudinal travel (X) 3200 mm
Cross travel (Y) 1300 mm
Headstock travel (Z) 760 mm
Distance between spindle nose and table top 200 ~ 960 mm
Distance between columns 1400 mm
FEED
Cutting feed 10 / 15 / 15 m/min
Rapid traverse 1 ~ 10000 mm/min
Minimum input increment 0001 µm
SPINDLE
Spindle taper NO.50 (NO.40)
Spindle speeds 60 ~ 6000 (15,000) r.p.m
Spindle bearing diameter Ø100 (Ø70)
Cooling / lubrication oil cooling / grease
ATC (Auto. Tool Changer)
Tool storage capacity 32 (40 / 60) tools
Tool holder B.T. 50 (BBT40)
Max. tool weight 18 (8) kgw
Max. tool length 400 (350) mm
Max. tool diameter Ø 125 (Ø75)
Max. tool dia. of adjacent pots are empty Ø250 (Ø130) mm
Tool selection Bi - direction
MOTORS
Spindle motor (30 min. rating / continuous rating) 18.5 / 15 (15 / 11) kw
Drive motors (X, Y, Z - axis) 6.0 / 4.2 / 4.2 kw
INSTALLATION REQUIREMENTS
Power requirement 220V ± 10% ; 50 / 60 Hz ± 2% ; 54 KVA
Air pressure 5 - 7 bar ( kgf / cm² )
Air flowrate 100 ( 1000 ) l / min
Floor space 4235 X 11000 mm
Net weight 27000 Kgw
CNC CONTROLLER
Controller FANUC 0i MC
STANDARD OPTION ACCESSORIES
Spindle cooling device BT50 10000 r.p.m. direct drive spindle
Coolant around spindle BBT40 15000 r.p.m. built-in spindle
Heat exchanger Coolant through spindle with filter
Removable manual pulse generator Oil mist device
Screw type chip conveyor + chip wagon Flat type chip conveyor + chip wagon
Call light Oil skimmer
Work light 90° angular
Enclosed splash guard X, Y, Z linear scale
Tool kit Automatic centering device
Coolant and air gun Tool breakage detection device
  Tool length measuring device
  Tool presetter
  Buzzer device
  Air conditioner
  ATC tool storage : 40 / 60 tools
Design and specifications are subject to change without  prior notice.
